Other settings (OPTION)

Configures the settings related to the display, kit phrase feature and so on.

MEMO

For details on the parameters that can be edited, refer to “Data List” (Roland website).

  1. Press the [MENU] button.
  2. Use the cursor buttons to select “SYSTEM” Ó “OPTION”, and press the [ENTER] button.
  3. The OPTION screen appears.
  5. Press the [F1] (LCD/LED)–[F4] (UI CUSTOM) buttons to select the item you want to edit.
  6. Cell_header

    Button

    Explanation

    [F1] (LCD/LED) button

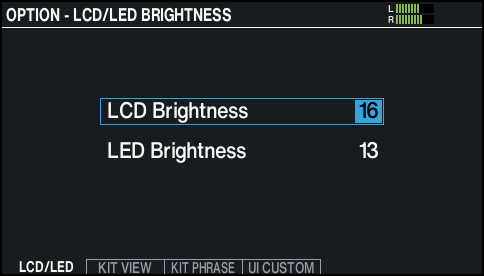

    Adjusts the brightness of the display and buttons.

    [F2] (KIT VIEW) button

    Configures the background and text size for the KIT screen.

    [F3] (KIT PHRASE) button

    Enables/disables the kit phrase function.

    Ø “Checking the drum kit sound (kit phrase)”

    [F4] (UI CUSTOM) button

    Sets whether the virtual pads are displayed on the screen.

    Ø “Using a virtual pad”

  7. Use the cursor buttons to select a parameter, and use the dial to edit the value.
  8. Press the [KIT] button to return to the KIT screen.
