Creating a set list

  1. On the KIT screen, press the [F5] (TOOLS) button.
  2. Use the cursor buttons or the dial to select “SET LIST”, and press the [F6] (SELECT) button.

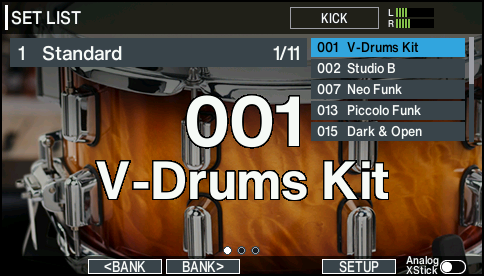

  3. The SET LIST screen appears, and set list turns on.
  5. Cell_header

    Button

    Explanation

    [F2] (çBANK) button

    Selects the set list bank.

    [F3] (BANKæ) button

    [F5] (SETUP) button

    Creates, edits or renames the set list.

  6. Press the [F5] (SETUP) button.

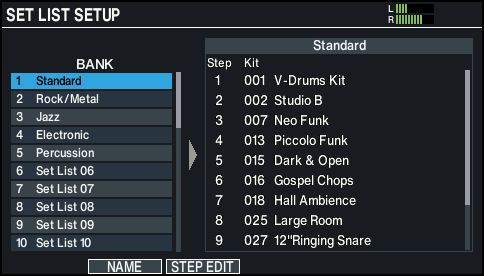

  7. The SET LIST SETUP screen appears.
  9. Sort or rename the set lists.
  10. Cell_header

    Button

    Explanation

    [F2] (NAME) button

    Changes the bank name of the set list at the cursor position.

    Ø “Renaming the drum kit (KIT NAME)”

    [F3] (STEP EDIT) button

    Edits the steps of the set list bank at the cursor position.

  11. Press the [F3] (STEP EDIT) button.
  12. Edit the steps of the set list.
  13. Use the cursor buttons to select each step, and use the dial to specify the drum kit at that step.
  14. Cell_header

    Button

    Explanation

    [F5] (INSERT) button

    The same drum kit is inserted at the cursor position, and steps after this point are moved backward one place.

    [F6] (DELETE) button

    Step at the cursor position is deleted, and steps after this point are moved forward one place.

  15. MEMO

    If the set list is empty, move the cursor to “END” and use the dial to specify a drum kit.

  16. Press the [KIT] button to return to the SET LIST screen.
