Backing up to an SD card (SAVE)

Here’s how to save all settings that are stored in the V51 (up to 99 sets).

  1. Insert the SD card into the V51.
  2. Ø “Side panel and front panel”
  3. Access the BACKUP screen.
  4. Use the cursor buttons to select “SAVE”, and press the [ENTER] button.

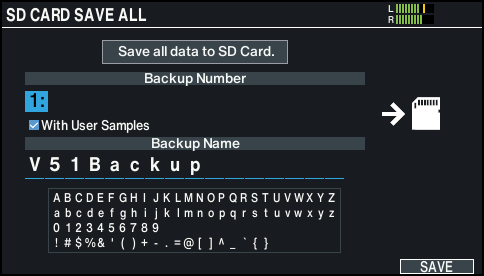

  5. The SD CARD SAVE ALL screen appears.
  7. Make the backup settings.
  8. Parameter select: use cursor buttons
  9. Value select: use [-] [+] buttons or dial
  10. Cell_header

    Parameter

    Explanation

    Backup Number

    Selects the backup number.

    With User Samples

    Selects whether user samples are also backed up.

    Backup Name

    Adds a name to the backup data.

    1. If you back up user samples as well, it may take several minutes to save the data depending on the size of the user samples.
    2. If you don’t back up the user samples, and you then delete the user samples in this unit or renumber them, the drum kit is not reproduced correctly even if you load the backup.
  12. Press the [F6] (SAVE) button.

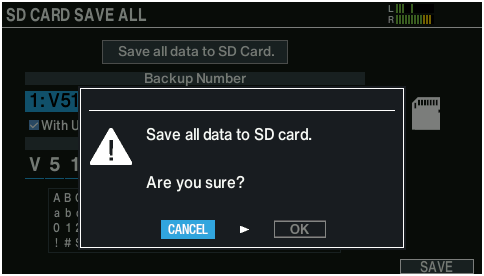

  13. A confirmation message appears.
  15. If you decide to cancel, select “CANCEL” and press the [ENTER] button.
  16. Select “OK” and press the [ENTER] button.
  17. The settings are saved to the SD card.
  18. Press the [ENTER] button to finish the operation.
