Loading backup data from an SD card (LOAD)

Here’s how you can load backup data into the V51 that’s saved on an SD card.

  1. Insert the SD card into the V51.
  2. Ø “Side panel and front panel”
  3. Access the BACKUP screen.
  4. Use the cursor buttons to select “LOAD”, and press the [ENTER] button.
  5. The SD CARD LOAD ALL screen appears.
  7. Make the load settings.
  8. Parameter select: use cursor buttons
  9. Value select: use [-] [+] buttons or dial
  10. Cell_header

    Parameter

    Explanation

    Backup Number

    Selects the backup number.

    With User Samples

    Selects whether user samples are also loaded.

    With Expansion Slots

    Selects whether to load the Instrument Expansions/Kit Packs.

    • You can’t load Instrument Expansions/Kit Packs into a slot if they aren’t installed in the rack.
      Ø “Racks and slots”
    1. When you load user samples, all user samples already present in this unit are overwritten. Depending on the size of the user samples, it might take ten minutes or more to load the data.
  12. Press the [F6] (LOAD) button.

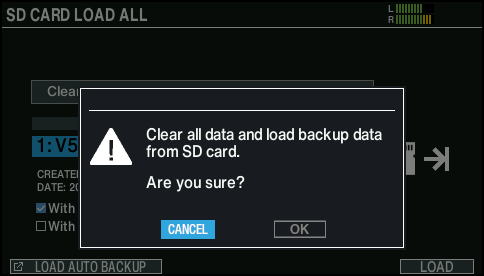

  13. A confirmation message appears.
  15. If you decide to cancel, select “CANCEL” and press the [ENTER] button.
  16. Select “OK” and press the [ENTER] button.
  17. The backup data is loaded from the SD card.
  18. Press the [ENTER] button to finish the operation.
