Loading kit backup data from an SD card (LOAD 1 KIT)

Here’s how kit backup data that was saved on an SD card can be loaded into the V51.

MEMO

You can also load V71 and V31 kit backup data.

  1. Insert the SD card into the V51.
  2. Ø “Side panel and front panel”
  3. Access the BACKUP screen.
  4. Use the cursor buttons to select “LOAD 1 KIT”, and press the [ENTER] button.

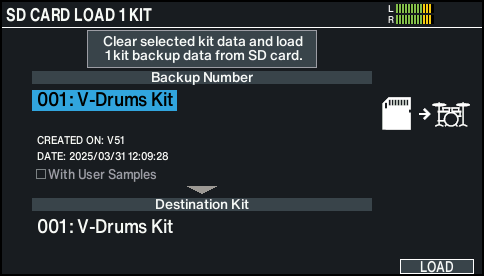

  5. The SD CARD LOAD 1 KIT screen appears.
  7. Make the load settings.
  8. Parameter select: use cursor buttons
  9. Value select: use [-] [+] buttons or dial
  10. Cell_header

    Parameter

    Explanation

    Backup Number

    Selects the backup number.

    The name of the product and the date and time of the backup (*1) are shown.

    With User Samples

    Selects whether user samples are also loaded.

    Destination Kit

    Selects the load destination drum kit.

  11. *1: Only data backed up when connected to Wi-Fi

    1. It might take ten minutes or more to load the user samples.
  12. Press the [F6] (LOAD) button.

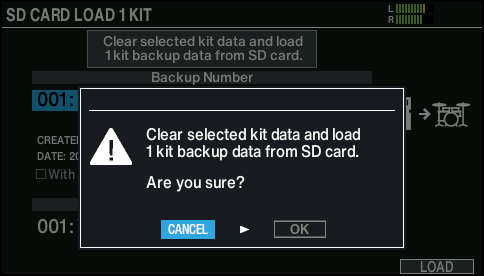

  13. A confirmation message appears.
  15. If you decide to cancel, select “CANCEL” and press the [ENTER] button.
  16. Select “OK” and press the [ENTER] button.
  17. The backup data is loaded from the SD card.
  18. Press the [ENTER] button to finish the operation.
