Adjusting the volume of an instrument or pad

Here’s how to adjust the volume of an instrument or pad.

  1. Press the [INSTRUMENT] button.

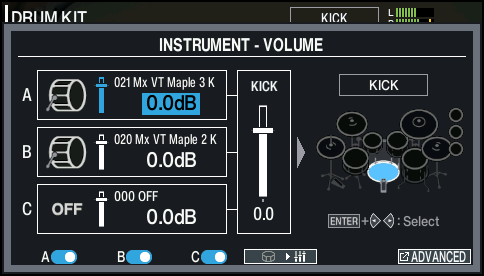

  2. Press the [F4] button to display the INSTRUMENT - VOLUME window.
  4. Select the pad to configure.
  5. Ø “Selecting the pad to set”
  6. Use the cursor buttons to select a parameter, and use the [-] [+] buttons or the dial to edit the value.

MEMO

  1. Press the [F5] (UNDO) button to return to the settings you had when you first accessed the screen.
  2. You can also press the [F6] (ADVANCED) button to make more detailed edits to an instrument. For details, refer to “Editing instruments in detail (V-EDIT)”.
