Tuning

You can tune the heads and choose the size of the cymbals.

  1. Press the [TUNING] button.

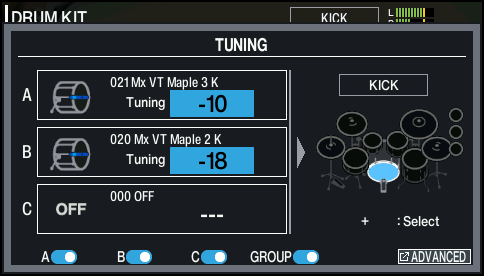

  2. The TUNING window appears.
  4. Select the pad to configure.
  5. Ø “Selecting the pad to set”
  6. Use the [-] [+] buttons or the dial to edit the values.

  7. MEMO

    1. By pressing the [F4] (GROUP) button, you can set the instruments (layers A–C) either as a set (on) or individually (off).
    2. Press the [F5] (UNDO) button to return to the settings you had when you first accessed the screen.
    3. You can also press the [F6] (ADVANCED) button to make more detailed edits to an instrument. For details, refer to “Editing instruments in detail (V-EDIT)”.
  8. Press the [KIT] button to return to the KIT screen.
