Loading the V71/V31 kit backup data

  1. Using your computer, save the V71 or V31 kit backup data you want to load to the “Kit” folder on your SD card.
  2. Ø “SD card folder structure”
  3. Insert the SD card into the V51.
  4. Ø “Side panel and front panel”

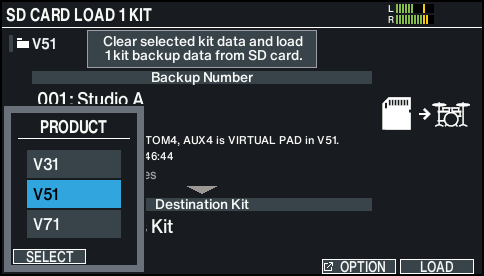

  5. On the SD CARD LOAD 1 KIT screen, press the [F1] (PRODUCT) button.
  6. Use the cursor [É] [Ç] buttons or the dial to select the product name of the kit backup data to load, and press the [F1] (SELECT) button.
  8. Make the load settings.
  9. Parameter select: use cursor buttons
  10. Value select: use dial
  11. Cell_header

    Parameter

    Explanation

    Backup Number

    Selects the backup number.

    The name of the product and the date and time of the backup (*1) are shown.

    With User Samples

    Selects whether user samples are also loaded.

    Destination Kit

    Selects the load destination drum kit.

  12. *1: Only data backed up when connected to Wi-Fi

    1. It might take ten minutes or more to load the user samples.
  13. Press the [F6] (LOAD) button.

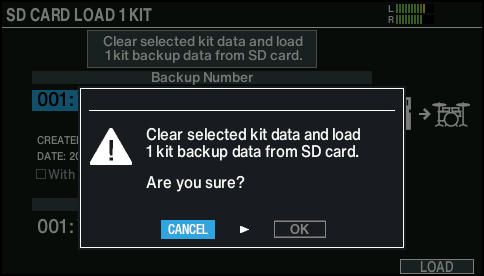

  14. A confirmation message appears.
  16. If you decide to cancel, select “CANCEL” and press the [ENTER] button.
  17. Select “OK” and press the [ENTER] button.
  18. The backup data is loaded from the SD card.
  19. Press the [ENTER] button to finish the operation.
