Loading the V51/V31 kit backup data

  1. Using the V51 or the V31, save the drum kit backup data to an SD card.
  2. Insert the SD card into the V71.
  3. Ø “Side panel and front panel”

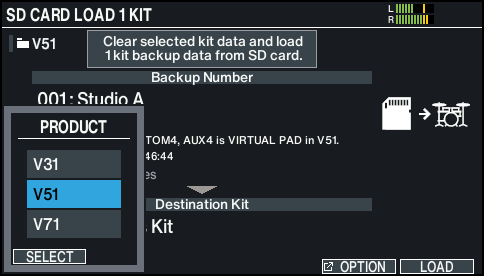

  4. On the SD CARD LOAD 1 KIT screen, press the [F1] (PRODUCT) button.
  5. Use the cursor [É] [Ç] buttons or the dial to select the product name of the kit backup data to load, and press the [F1] (SELECT) button.
  7. Make the load settings.
  8. Parameter select: use cursor buttons
  9. Value select: use dial
  10. Cell_header

    Parameter

    Explanation

    Backup Number

    Selects the backup number.

    The name of the product and the date and time of the backup (*1) are shown.

    With User Samples

    Selects whether user samples are also loaded.

    Destination Kit

    Selects the load destination drum kit.

  11. *1: Only data backed up when connected to Wi-Fi

    1. It might take ten minutes or more to load the user samples.
  12. Press the [F6] (LOAD) button.

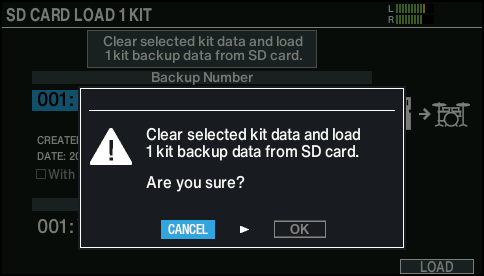

  13. A confirmation message appears.
  15. If you decide to cancel, select “CANCEL” and press the [ENTER] button.
  16. Select “OK” and press the [ENTER] button.
  17. The backup data is loaded from the SD card.
  18. Press the [ENTER] button to finish the operation.
