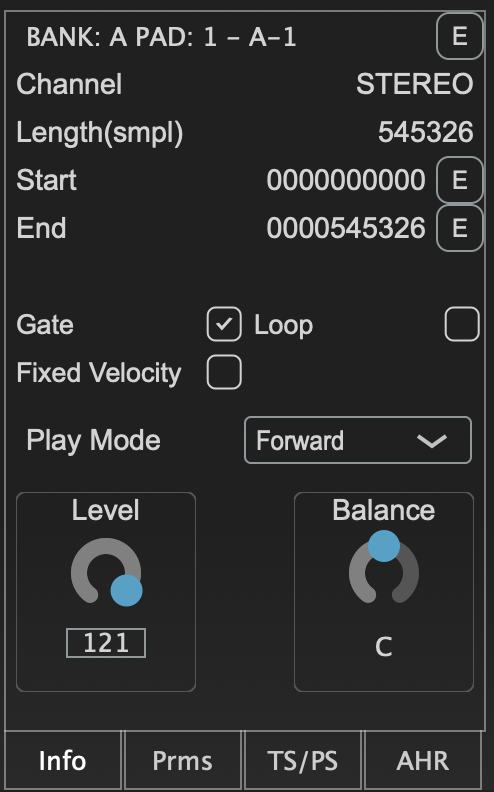

Use this screen to edit settings such as sample and loop playback ranges, gate and loop on/off and so forth.

Click the [E] button for each parameter you want to set.

Parameter Value Explanation
Channel STEREO, MONO

Indicates whether the sample is stereo or mono.
Length(smpl) 0–1000000000 Displays the sample length.
Start 0–1000000000

Sets the playback start position.

To edit, drag the “S” icon () in the waveform viewer.
End 0–1000000000

Sets the playback end position.

To edit, drag the “E” icon () in the waveform viewer.
Loop Start 0–1000000000

Sets the loop range start position.

To edit, drag the “L” icon () in the waveform viewer.
Gate OFF, ON

Configures the gate.

Select the checkbox () to turn this on.
Loop OFF, ON

Configures the loop.

Select the checkbox () to turn this on.
Fixed Velocity OFF, ON When this is ON, the velocity of each sample is set to always play back at 127 (the maximum).
Play Mode Forward, Reverse, Fwd Ping-Pong, Rev Ping-Pong

Switches the sample’s playback direction (“Forward” or “Reverse”).
Level 0–127 Adjusts the sample volume.
Balance MONO(L), L50–C–R50, MONO(R) Sets the stereo position of the sample.
