1. Panel Descriptions

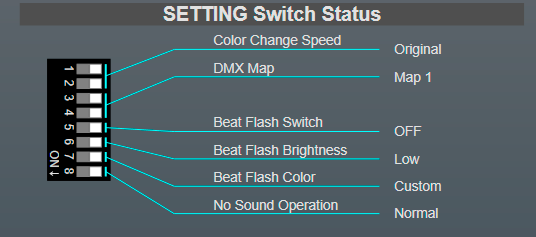

SETTING Switch Status

This shows the status of the SETTING switches of the VC-1-DMX.


You can’t change the status of the VC-1-DMX’s SETTING switches from this screen.
