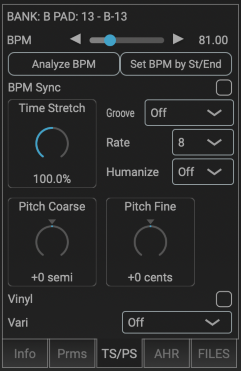

Use this screen to adjust the sample playback speed and pitch (key).

Parameter

Value

Explanation

BPM

40.0–200.0

Sets the sample’s BPM.

Analyze BPM

Analyzes and automatically sets the sample’s BPM.

Set BPM by St/End

Automatically sets the BPM to match the playback range.

BPM Sync

ON, OFF

Turns BPM Sync on/off.

When you select the checkbox () to turn this on, the unit operates in sync with external clock input.

Time Stretch

50.0–150.0

Speeds up the sample by making it shorter, or slows it down by making it longer.

Pitch Coarse

-12–12

Sets the sample playback pitch.

Pitch Fine

-100–100

Fine-tunes the sample playback pitch.

Vinyl

ON, OFF

Turns vinyl mode on/off.

When this is on, the playback speed and pitch can be changed at the same time, like an analog record.
VARI MODE Off VARI mode is not used.
Backing Processes the sound as appropriate for musical instruments whose sounds have a noticeable decay.
Ensembling Processes the sound as appropriate for musical instruments that have a sustaining sound.
Groove Off, 8<, 8<<, 8>, 8>>, 16<, 16<<, 16>, 16>>

Selects the groove template.

There are templates for 8-beat and 16-beat grooves, and each template has its own swing strength and timing.
Rate 1–15

Sets the strength of the effect that shifts the timing to a fixed value.

The sound quality may suffer if you raise the rate too high.
Humanize Off, Low, Mid, High Randomly changes the strength of the effect that shifts the timing.
