You can assign waves selected in the wave list to assign to the pads of the current kit.

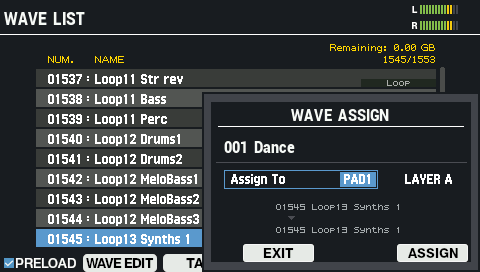

  1. On the WAVE LIST screen, press the [F6] (ASSIGN) button.

    The WAVE ASSIGN window appears.


  2. Use the cursor [ã] [â] buttons to select “Assign To”.


    Item

    Value

    Explanation

    PAD

    PAD1–9, TRIG IN1–8, FOOT SW1/2

    Selects the pad to assign.

    LAYER

    LAYER A/B

    Selects the layer of the pad.



  3. Use the [-] [+] buttons to change the value.
  4. To execute, press the [F6] (ASSIGN) button.

    After “Assign Completed!” appears, the display returns to the previous screen.

    To cancel the operation, press the [F4] (EXIT) button.
