You can assign tags to a wave.
The tag you set is shown as an icon to the right of the wave names in the WAVE LIST screen.

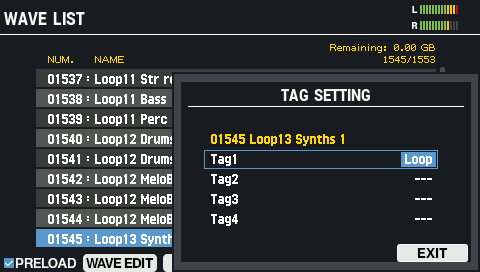

  1. On the WAVE LIST screen, press the [F3] (TAG) button.

    The TAG SETTING window appears.


  2. Use the cursor [à] [á] buttons to select TAG1–TAG4.

  3. Use the [-] [+] buttons to select “TAG”.


    Parameter

    Value

    Explanation
    Tag 1–4

    ---, TAG 1–127 (tag names set in WAVE TAG EDIT)

    Assigns a wave tag to the selected wave.
    You can filter the waves in the wave list by using the assigned wave tags.
    The name for each assigned wave tag can be edited in WAVE TAG EDIT.

    Editing Tags for Waves (TAG EDIT)



  4. When you are finished, press the [F6] (EXIT) button.
